Enemy AI With C++ And Blueprints In Unreal Engine

Reading Time: 28 minutes
Level: Beginner – Intermediate
Version: Unreal Engine (Any Version)

Help Others Learn Game Development

Share on facebook
Share on twitter
Share on reddit
Share on linkedin

Depending on the type of enemies you have in your game, you will create different AI behavior. And there are multiple ways how to create enemy AI in Unreal Engine, from the basic enemies that move between two points all the way to creating complex AI behavior using Behavior Trees and Blackboards.

In this post we are going to learn about AI in Unreal Engine by creating basic, intermediate and advanced enemy AI behavior using C++ and blueprints.

Download Assets And Complete Project For This Tutorial

To follow along with this tutorial, please download the starter project by clicking on the green Download assets button above.

In the downloaded folder you will find the finished project, and the starter project which I prepared for you to follow this tutorial.

Important Information Before We Start

One of the labels for this tutorial is beginner, however this is not a tutorial for complete beginners.

I expect you to know how to create basic games in Unreal, but you are a beginner when it comes to AI programming in Unreal. So it is mandatory that you know how to code in C++ and blueprints, and know how to use Unreal and its interface.

Another thing to note is that I am using Unreal Engine 4.27 for this tutorial, but the techniques that I am going to teach you can be applied to any Unreal Engine version.

Enemy AI Patrol

First we are going to create a basic patrol behavior for the enemy where the enemy is going to roam in the level.

Open the Enemy_AI_Starter_Project that you downloaded. Open the EnemyAI_Map located in Content -> Maps folder. In the map you will notice the enemy and the player actor are already prepared.

Open the BP_Enemy blueprint located in Content -> Blueprints folder. In the Event Graph tab, Right Click and search for custom event:

Img 1

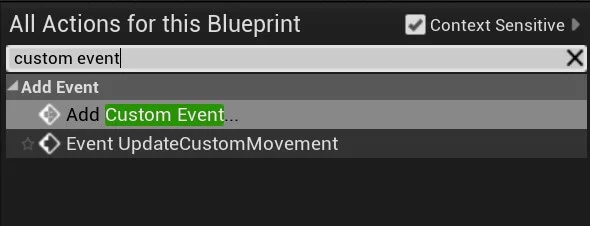

Name the new custom event Random Patrol:

Img 2

To make the enemy patrol in the level, we are going to use AI MoveTo function, and we are going to provide it a random destination within the navigationable bounds volume:

Img 3

You can copy the nodes from here:

For AI MoveTo parameters we provided self, which is a reference to the enemy blueprint, and for the destination we used the GetRandomReachablePointInRadius which is a function that will give us a reachable point in the radius we provide from the origin.

This function will calculate all the collisions that are in the way of the AI and that way the enemy will cleverly avoid any obstacles in his path.

For the origin parameter of the GetRandomReachablePointInRadius function we provided the location of the enemy, because we are going to patrol from the enemy’s location.

For the radius I’ve set 1500 as the value, which means it will try to get a reachable point from the enemy’s location in the 1500 value radius. Of course, we can change the radius value to a higher or a lower number anytime we want to make the enemy patrol further in the level.

When the AI MoveTo function finishes, we are going to delay for 1 second using the Delay function, and then call the Random Patrol node we create so that the enemy will randomly patrol the level again.

Before we proceed to test this out, from the BeingPlay call the Random Patrol node we created:

Img 4
Compile and save the changes we made in the BP_Enemy blueprint. In order to make this work, we need to add the NavMeshBoundsVolume in the level. From the Place Actors tab, search for the NavMeshBoundsVolume:

Img 5

Drag the NavMeshBoundsVolume in the level and set the following values for its Location and Scale:

Img 6

This will make the NavMeshBoundsVolume cover the whole level and this will be the navigationable area where the enemy can move with the help of AI MoveTo function:

Img 7

Let us now run the game and test it out:

We can also remove the delay that happens after AI MoveTo function finishes which will make the enemy patrol the level without stopping.

Detecting The Player's Presence And Moving Towards Him

We can use the same function to make the enemy run towards the player. But first, we need a way to detect the player’s presence near the enemy. For that we are going to attach a Sphere Collision component to the enemy.

In the blueprint editor for the BP_Enemy, in the Components tab click on Add Component and filter for sphere collision:

Img 8
Rename the component to Player Collision Detection and in the Details tab set the Sphere Radius to 800:

Img 9

In the My Blueprint tab, under variables create a new boolean variable and name it Player Detected. Then create another variable and for the variable type, click on the variable icon:

Img 10

In the search bar filter for third person and select the Object Reference for the Third Person Character:

Img 11
In this variable we will store a reference to the player actor since we need his location in order to make the enemy move towards him.

For that, we need to select the Player Collision Detection component in the Components tab, and in the Details tab scroll all the way to the bottom and under Events, click on the green + button for On Component Begin Overlap and On Component End Overlap:

Img 12

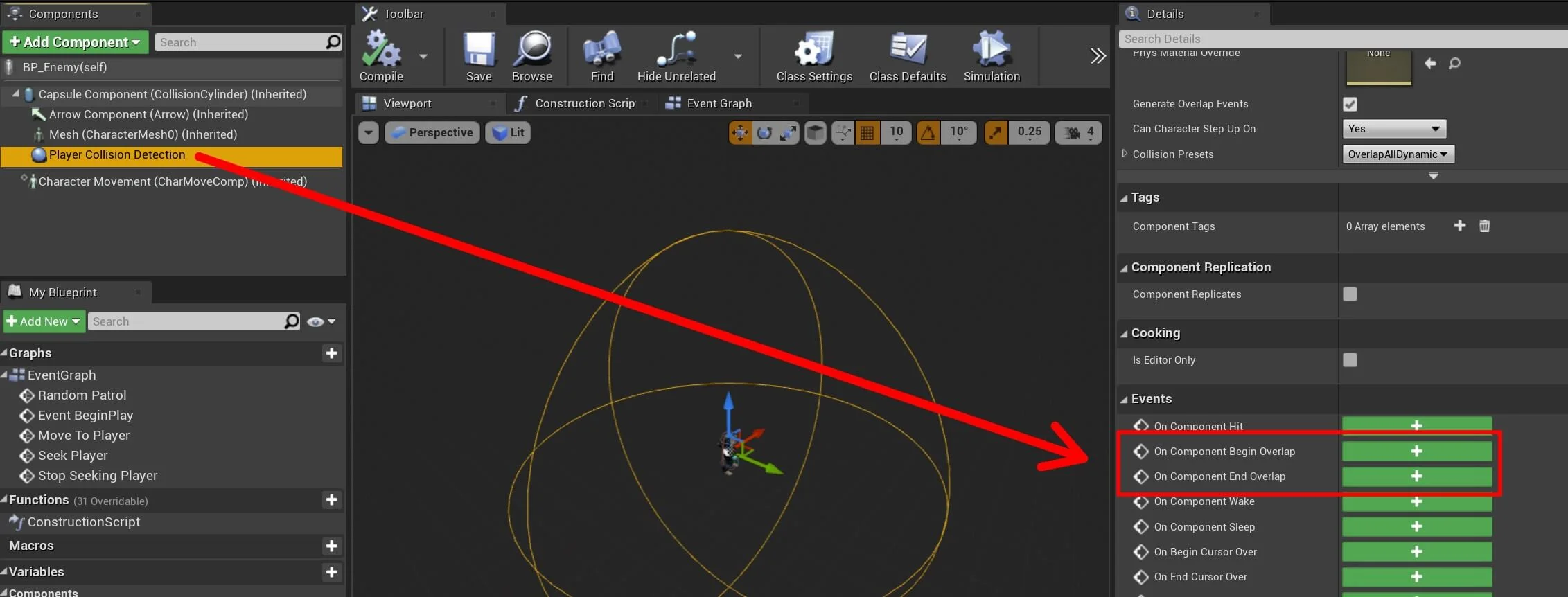

With these two functions we are going to detect when the Player Collision Detection sphere collides with the player actor so that we can chase him, and when the player actor exists the collision so that we can stop chasing him.

But before we do that, we are going to create a custom event and name it Move To Player, which is going to make the enemy move towards the player actor:

Img 13

You can copy the nodes from here:

As you can see, we are using the Player REF variable, which is a reference to the player actor in the game, to get the location of the player and make the enemy move towards him.

The Acceptance Radius parameter for the AI MoveTo function is how far from the target will the AI stop moving, in this case we set the value to 150 units.

To get a reference to the player actor, we need to detect collision in On Component Begin Overlap that we created:

Img 14

In OnComponentBeginOverlap we first perform a cast to test if the player actor has collided with the sphere, if that is true, we will get a reference to the player actor and we set the Player Detected bool value to true. We will use this variable to control the enemy AI logic.

And then, we make the enemy go towards the player using the Move To Player custom event node we created.

In OnComponentEndOverlap, when the player actor collides with the sphere, we are going to set the Player Detected value to false, and make the enemy patrol randomly again:

Img 15
You can copy the nodes from here:


Compile and save the changes and now let’s run the game and test it out:

While the enemy is detecting the player’s presence and going towards his location, we have one big issue, and that is the enemy is not following the player when he moves around, instead it goes towards the first location where the player was when we detected the collision with the player.

We can fix this issue by calling the Move To Player in the Tick event, but this will make a problem when we want to attack the player. Instead there is a better solution to this problem that we are going to implement now.

A Smarter Way To Make The Enemy AI Chase The Player

Since the AI MoveTo function will move the AI to the first position we pass to it, we need a way to test if the target position has changed so that the AI will move towards the changed position.

For that, I am going to create a new custom event, name it Seek player and add the following nodes to it:

Img 16
You can copy the nodes from here:

Seek Player will call the Move To Player which makes the AI move towards the player target, but it will also use the Set Timer By Function Name to call the Seek Player after every 0.25 seconds.

We specified that in the Function Name parameter where we passed the Seek Player, and for the Time parameter we set 0.25. Also, the Looping parameter is set to true, which means the Set Timer By Function Name will be called over and over after every 0.25 seconds.

Before we proceed, we are going to create another custom node that will make the AI stop seeking the player:

Img 17

You can copy the nodes from here:

The Clear Timer By Function name will stop the timer from calling the function with the specified name, in our case Seek Player which we provided in the Function Name parameter.

We need to do this because we specified that the Set Timer By Function Name should loop, which means it will run all the time until we stop it by using Clear Timer By Function Name.

Now, we need to edit the Move To Player function:

Img 18
You can copy the nodes from here:

Now, when the enemy reaches the player, it will test if the player is still within its bounds by checking if the Player Detected value is true, if that is the case it will continue chasing the player by calling Seek Player.

We also need to change the On Component Begin and End Overlap for the enemy:

Img 19

You can copy the nodes from here:

Compile and save the new changes to the BP_Enemy blueprint and let’s run the game to test it out:

As you can see now, even when the player changes his location the enemy is constantly chasing him.

Enemy AI Attack

Now that we have the chase logic in place, we can create the attack functionality of the enemy.

First we are going to create a new boolean variable and name it Can Attack Player, we are going to use this variable to control the attack logic of the enemy.

Next, in order to detect if the player is in the attack range of the enemy, we are going to create a new Sphere Collision component. Name the new Sphere Collision to Player Attack Collision Detection and in the Details tab set the Sphere Radius to 200:

Img 20
For the Event Graph, we need the On Component Begin and End Overlap for the Player Attack Collision Detection:

Img 21

The idea is when we detect player collision with the Player Attack Collision Detection component, we will set the Can Attack Player value to true, and when the player exists that collision we will set the value to false:

Img 22
You can copy the nodes from here:


We also need to make changes in the Move To Player node so that the enemy attacks the player when it gets close to him. First we are going to create a new condition when the AI MoveTo finishes:

Img 23

When the enemy gets to the player’s location we are going to check if the enemy can attack the player, if that is true we will call Stop Seeking Player because now we need to attack him, if the enemy can’t attack the player, then we will call Seek Player again.

To attack the player, we are going to use the montage animation I’ve prepared which is the enemy’s attack animation:

Img 24

You can copy the nodes from here:

The Play Montage function takes a few parameters that we need to provide. The first one is the Mesh which represents the Skeletal Mesh Component on which the animation will be played.

For that, I provided the Mesh component from the BP_Enemy:

Img 25

For the Montage To Player click on the drop down list and select the Mutant_Attack_Montage:

Img 26

When the montage finishes playing, we test if Player Detected is true, if that is the case we will make the enemy move towards the player by calling Seek Player and that will repeat this same process over again.

Compile and save the changes and let’s run the game to test it out:


Attaching Collision Components To Sockets

Now that we are attacking the player, let us also deal damage. To do this, we need to edit the skeleton of the mutant model. In the Content -> Enemy_Model folder open Mutant_Skeleton in the editor:

Img 27

In the options tab on the left side, locate the RightHand in the skeleton hierarchy and Right Click ->Add Socket:

Img 28
This will create a socket on the right arm of the mutant model:

Img 29
Now we can open the BP_Enemy in the editor, and in the Components tab, select the Mesh component and from the Add Component button filter for Box Collision:

Img 30

Rename the Box to Damage Collision, and in the Details tab under the Sockets settings for the Parent Socket field click on the little loop icon and search for the RightHandSocket which is the name of the socket we created in the Mutant_Skeleton a few moments ago:

Img 31
This will make the Damage Collision component a child of that socket, and we know that socket is connected to the right hand of the mutant model:

Img 32

This means that the Damage Collision will move along with the right hand of the mutant model. We do need to reposition and resize the Damage Collision component, so set the following values for the location:

Img 33

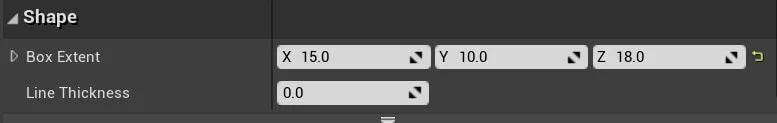

And the following values for the Box Extent axis under the Shape settings:

Img 34

Now the Damage Collision component looks like this:

Img 35


Animation Notification Events

The reason why we went through all of this Box collision and socket set up is because we are going to use the attack montage animation to trigger the damage functionality.

If we open the Mutant_Attack_Montage which is located in Content ->Enemy Model folder, and preview the animation we will see that the mutant is attacking with its right hand:

Since we attached the Damage Collision component to the right hand socket, when the attack animation is played and the mutant moves his right hand, the Damage Collision component will move along with it and we can use that to detect the collision with the player actor and deal damage.

To do that we need to add animation notifiers that will notify us when the animation is at a certain frame.

We can do that by dragging the animation preview slider at the desired frame in the animation timeline:

Img 36

Or we can set the exact frame we want on the right side of the Filter search bar in the animation timeline:

Img 37

When we are done with that, on the Notifies timeline, Right Click -> Add Notify -> New Notify and name the new notify Attack Started:

We created a new animation notify, or notification, on frame 11, which means when we play the attack animation and when the animation reaches frame 11, the Attack Started notify will be called, and we will be notified in the code when that happens.

We also need to create another notification that will inform us that the animation has ended. Go on frame 30, and create a new notify and name it Attack Ended.

After you finish, you will see two animation notifications in the attack animation timeline:

Img 38

Before we access the notification events in the blueprint editor, we need to go inside the BP_Enemy editor, and under variables create a new boolean variable and name it Can Deal Damage:

Img 39

Now open the BP_Enemy_Animation blueprint located in Content -> Enemy_Model folder. In the Event Graph tab, Right Click and search for attack started:

Img 40

In the same way search for the attack ended anim notify node. We already have a reference to the BP_Enemy in the BP_Enemy_Animation blueprint, so we can use that variable to access the Can Deal Damage bool to change its value when the attack has started and when the attack ends:

Img 41

You can copy the nodes from here:

Going back to BP_Enemy blueprint, select the Damage Collision component and in the Details tab under Events, click on the green + button for the On Component Begin Overlap:

Img 42

In the Event Graph tab, for the On Component Begin Overlap of the Damage Collision component, add the following nodes:

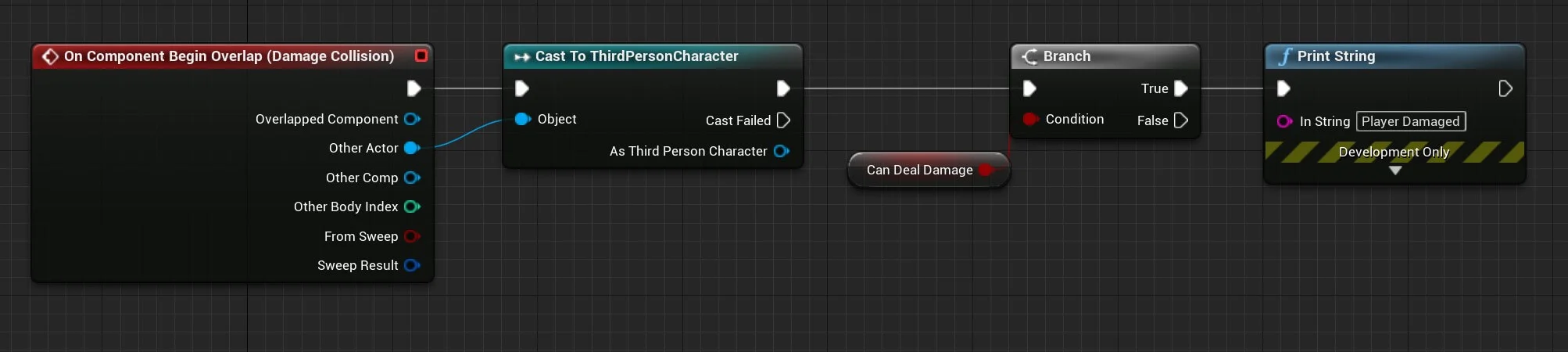

Img 43

You can copy the nodes from here:

When the Damage Collision component detects the collision with the player actor, we are going to check if we can deal damage to the player, if that is true, we will deal damage, or in our case print something to the console hehehe 🙂

Compile and save the changes we made and let’s run the game to test it out:

Every time the enemy attacked the player and the collision was detected, we saw Player Damaged printed in the top left corner of the game window.

Of course, in your game, you would add logic where the player will have a health value and that health value will be decreased when the enemy attacks him, but this is the basic logic that goes behind that.

Enemy AI C++ Version

Now we are going to take a look at the C++ version of the enemy AI that we created. First, in Content -> C++ Classes -> Enemy_AI folder, Right Click -> New C++ Class. Make sure that the class inherits from the Character then click Next:

Img 44
Give the class a name MutantEnemy and click Create Class:

Img 45
Open the MutantEnemy.h file, and at the bottom of the class declaration add the following lines of code:


					public:

	bool PlayerDetected;
	bool CanAttackPlayer;

	UPROPERTY(BlueprintReadWrite)
		bool CanDealDamage;

	class AEnemy_AICharacter* PlayerREF;

	UPROPERTY(EditAnywhere)
		class USphereComponent* PlayerCollisionDetection;

	UPROPERTY(EditAnywhere)
		class USphereComponent* PlayerAttackCollisionDetection;

	UPROPERTY(EditAnywhere)
		class UBoxComponent* DamageCollision;



These are all the variables that we will need to create the enemy AI logic. And if you take a look at the variable names you will notice that these are the same variables as the ones we used in the BP_Enemy blueprint.

For the CanDealDamage bool variable we added BlueprintReadWrite as the parameter in the UPROPERTY because we need to access that variable in the BP_Enemy_Animation and with the help of animation notifiers set it to true or false depending on the state of the attack animation.

The AEnemy_AICharacter declared on line 9 is actually the class used to create the ThirdPersonCharacter blueprint that you can find in Content -> ThirdPersonCPP -> Blueprints, which is the player actor we use in the game.

I am addressing this just to avoid confusion, if there is any, because the class name has enemy AI in it, and I didn’t want to create a new class just to give it another name and still use it for the same purpose with the same code.

One thing that you will notice on lines 9, 12, 15, and 18, is that we are using forward declaration to declare the variables that we need. If you are not familiar with the concept of forward declaration, you can read about it by clicking here.

Now open the MutantEnemy.cpp file, and first at the top, above the class declaration add the imports we need to use the variables we declared in the .h file:


					#include "Enemy_AICharacter.h"
#include "Components/SphereComponent.h"
#include "Components/BoxComponent.h"



If you don’t know which includes to use for specific variables, you can take a look at my guide on that topic by clicking here.

In the constructor of the mutant class we are going to create these components and attach them to the root component:


					AMutantEnemy::AMutantEnemy()
{
 	// Set this character to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;

	PlayerCollisionDetection =
		CreateDefaultSubobject<USphereComponent>(TEXT("Player Collision Detection"));

	PlayerCollisionDetection->SetupAttachment(RootComponent);

	PlayerAttackCollisionDetection =
		CreateDefaultSubobject<USphereComponent>(TEXT("Player Attack Collision Detection"));

	PlayerAttackCollisionDetection->SetupAttachment(RootComponent);

	DamageCollision = CreateDefaultSubobject<UBoxComponent>(TEXT("Damage Collision"));
	DamageCollision->SetupAttachment(GetMesh(), TEXT("RightHandSocket"));
}



The code above is straight forward as we are just creating the components from code, but one specific thing that I will mention is on line 17 where we are attaching the DamageCollision variable to the mesh, we also need to specify the socket name where we want to attach the DamageCollision, same as what we did inside the BP_Enemy blueprint.

Now we can create a blueprint out of the mutant enemy class, so go inside the Content -> Blueprints, Right Click -> Blueprint Class and for the All Classes, click on the drop down list and filter for mutantenemy:

Img 46

Name the new blueprint BP_Enemy_CPP and open it in the editor. First, select the Mesh component in the Components tab and in the Details tab for the Mesh settings select the Mutant model, and for the Animation settings select the BP_Enemy_Animation_C blueprint:

Img 47

As soon as you select the Mutant model for the Mesh component, you will notice how the Damage Collision component is attached to the right hand of the Mutant enemy:

Img 48

We also need to resize the Damage Collision same way we did in the BP_Enemy blueprint:

Img 34

And we need to change the Location X value as well:

Img 33

The last step is to resize the Radius for the Player Collision Detection to 800:

Img 49

And set the Radius for the Player Attack Collision Detection to 200:

Img 50


Small Fixes Before We Code C++ AI Logic

Before we proceed to code the AI behavior with C++, we need to make some small changes to the BP_Enemy_Animation blueprint.

Because now we are using BP_Enemy_CPP blueprint, we need to change the enemy reference variable to the type of the blueprint we are using.

Open the BP_Enemy_Animation blueprint and in the My Blueprint tab create a new variable, name it Enemy CPP REF and set the type to BP_Enemy_CPP and chose Object Reference from the list:

Img 51

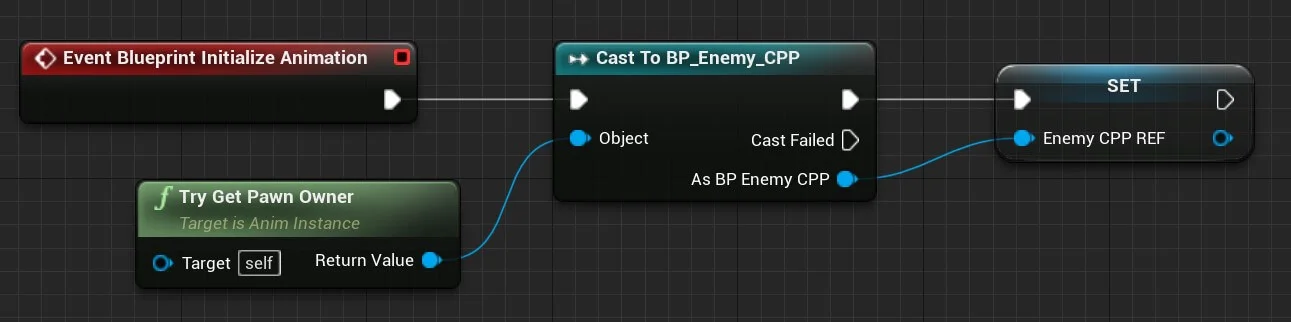

From the Blueprint Initialize Animation event, instead of getting the reference to the Enemy REF variable, we are going to get a reference to Enemy CPP REF variable:

Img 52

You can copy the nodes from here:

Now from the AnimGraph tab, open the Idle – Run State Machine and then open Idle – Run animation, and instead of using the Enemy REF variable, we are going to use Enemy CPP REF variable to get the velocity of the enemy actor for the purpose of the idle / run animation:

Img 53

You can copy the nodes from here:

We had to make these changes otherwise when we start using BP_Enemy_CPP we would see all kind of errors because we are trying to get the reference to the BP_Enemy inside the BP_Enemy_Animation blueprint.

We also need to change the code in the animation notifiers to use the Enemy CPP REF instead of Enemy REF:

Img 58
You can copy the nodes from here:

The last step is to delete the BP_Enemy actor from the World Outliner tab, and drag the BP_Enemy_CPP actor in the game:

Img 54


Creating And Setting Up The AI Controller Class

To create the AI logic we are going to use the AIController class. Inside the Content -> C++ Classes -> Enemy_AI folder, Right Click -> New C++ Class. Click on the Show All Classes checkbox and filter for ai controller, select it and press Next:

Img 55

In the next window give the class a name MutantAIController and create the class. Before write code in the new class we created, we need to specify that the BP_Enemy_CPP blueprint will use MutantAIController class.

Open BP_Enemy_CPP blueprint, select the BP_Enemy_CPP(self) top parent, and in the details tab under Pawn settings, for the AI Controller Class click on the drop down list and select the MutantAIController class:

Img 56

Since we are going to use the AI Controller class to control the AI actor, we also need to specify in the blueprint of the AI actor which AI Controller class is going to control him.

AI Patrol Logic With C++

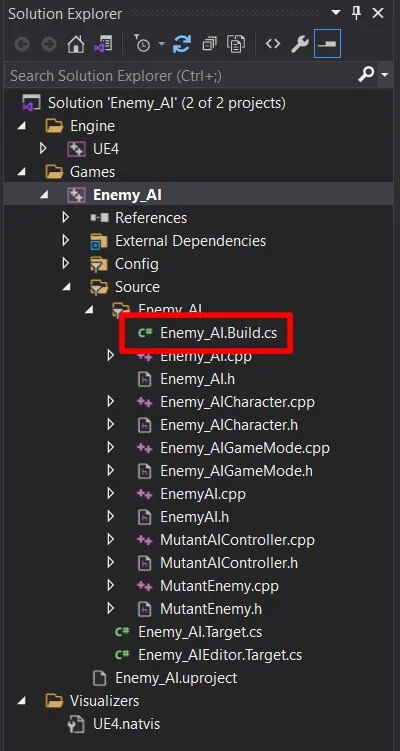

Now open Visual Studio and first we need to specify in the Build.cs file that we want to use the navigation system. In the Solution Explorer locate the Enemy_AI.Build.cs file and open it:

Img 57

In the PublicDependencyModuleNames add NavigationSystem at the end:


					PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine",
			"InputCore", "HeadMountedDisplay", "NavigationSystem" });



This is mandatory if you want to use the navigation system classes, if we don’t add this line and try to use the navigation system, the code will not compile and we will see errors in the Output tab.

Now open the MutantAIController.h file, and add the following lines of code:


					public:
    void BeginPlay() override;

private:

    class UNavigationSystemV1* NavArea;

    FVector RandomLocation;

public:

    UFUNCTION()
        void RandomPatrol();



On line 6 we declared UNavigationSystemV1 which is a variable that we will use to get random navigationable points in the level.

In the RandomLocation variable we will store the random navigationable point we get from the UNavigationSystemV1.


And the RandomPatrol function is going to make the enemy actor randomly patrol the level.

Now open the MutantAIController.cpp file, and at the top, below the first #include line, add the following line of code:


					#include "NavigationSystem.h"



We need to include the navigation system in order to use its functionality. Inside BeginPlay we are going to get a reference to the navigation system:


					void AMutantAIController::BeginPlay()
{
    Super::BeginPlay();

    NavArea = FNavigationSystem::GetCurrent<UNavigationSystemV1>(this);

    RandomPatrol();
}


A very important note here, when you are overriding BeginPlay for the AIController, make sure that you call:


					Super::BeginPlay();


otherwise your AI will never move and you will be stuck trying to figure out what you did wrong.

In the RandomPatrol function, we are going to get a random reachable location from the NavArea variable and make the AI move to that location:


					void AMutantAIController::RandomPatrol()
{
    if (NavArea)
    {
        NavArea->K2_GetRandomReachablePointInRadius(GetWorld(), GetPawn()->GetActorLocation(),
            RandomLocation, 15000.0f);

        MoveToLocation(RandomLocation);
    }
}


TheK2_GetRandomReachablePointInRadius function takes the world as the first parameter.


The second parameter is the origin location from which we are going to search for the reachable point, for that parameter we passed the location of the actor that is controller by the AI Controller which is our BP_Mutant_CPP.

The third parameter is the reference to the FVector variable that will hold the random location values.

And the fourth parameter is the radius from the origin location in which we are going to get the random location.

After we get the random location we simply call the MoveToLocation function to make the AI move to the specified location.

We are done with the random patrol movement and we can test this now, but this will make the AI patrol only once, because when the movement finishes of the AI finishes, we are not calling RandomPatrol to make the AI move again.

To do this, we need to subscribe to the OnRequestFinished event of the PathFollowingComponent and we are going to do that in the MutantEnemy class.

But before we do that, I am going to leave the finished version of the MutantAIController.h and .cpp file as a reference:


					#pragma once

#include "CoreMinimal.h"
#include "AIController.h"
#include "MutantAIController.generated.h"

/**
 *
 */
UCLASS()
class ENEMY_AI_API AMutantAIController : public AAIController
{
	GENERATED_BODY()

public:
    void BeginPlay() override;

private:

    class UNavigationSystemV1* NavArea;

    FVector RandomLocation;

public:

    UFUNCTION()
        void RandomPatrol();

};


MutantAIController.cpp:


					#include "MutantAIController.h"

#include "NavigationSystem.h"


void AMutantAIController::BeginPlay()
{
    Super::BeginPlay();

    NavArea = FNavigationSystem::GetCurrent<UNavigationSystemV1>(this);

    RandomPatrol();
}

void AMutantAIController::RandomPatrol()
{
    if (NavArea)
    {
        NavArea->K2_GetRandomReachablePointInRadius(GetWorld(), GetPawn()->GetActorLocation(),
            RandomLocation, 15000.0f);

        MoveToLocation(RandomLocation);
    }
}



Now open the MutantEnemy.h file and right below where we declared the DamageCollision variable, add the following lines of code:


					class AMutantAIController* MutantAIController;

	void OnAIMoveCompleted(struct FAIRequestID RequestID, const struct FPathFollowingResult& Result);



Since we specified that the MutantAIController is the controller of the MutantEnemy, we need to get a reference to it in order to perform AI actions, hence the MutantAIController variable declaration.

The OnAIMoveCompleted function will subscribe to the OnRequestFinished event to inform us when the AI movement has finished.

Now open the MutantEnemy.cpp file and below the last #include, add the following lines:


					#include "MutantAIController.h"
#include "Navigation/PathFollowingComponent.h"
#include "AITypes.h"



We need the includes in order to use functions from the AIController and to be able to use FAIRequestID and FPathFollowingResult as parameters in the OnAIMoveCompleted function.

In BeingPlay, we are going to get a reference to the AIController and subscribe to the OnRequestFinished event:


					void AMutantEnemy::BeginPlay()
{
	Super::BeginPlay();

	MutantAIController = Cast<AMutantAIController>(GetController());
	MutantAIController->GetPathFollowingComponent()->OnRequestFinished.AddUObject
	(this, &AMutantEnemy::OnAIMoveCompleted);
}



And inside the OnAIMoveCompleted function, we are going to call the MutantAIController to make the AI patrol again:


					void AMutantEnemy::OnAIMoveCompleted(FAIRequestID RequestID, const FPathFollowingResult& Result)
{
	MutantAIController->RandomPatrol();
}


Save and compile the code and let’s run the game to test it out:


As you can see, the enemy is patrolling the level cleverly avoiding all obstacles in its way. You can change the radius parameter value in the K2_GetRandomReachablePointInRadius function to make the AI patrol further from its location.

Detecting And Chasing The Player

To make the AI chase the player we need to detect the player’s presence near the enemy. For that we need to create functions that we will bind to on component being and end overlap of the collision components.

In the MutantEnemy.h file below the line where we declared the OnAIMoveCompleted function, add the following lines of code:


					UPROPERTY(EditAnywhere)
		float StoppingDistance = 100.0f;

	FTimerHandle SeekPlayerTimerHandle;

	UFUNCTION()
		void MoveToPlayer();

	UFUNCTION()
		void SeekPlayer();

	UFUNCTION()
		void StopSeekingPlayer();

	UFUNCTION()
		void OnPlayerDetectedOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnPlayerDetectedOverlapEnd(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex);

	UFUNCTION()
		void OnPlayerAttackOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnPlayerAttackOverlapEnd(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex);

	UFUNCTION()
		void OnDealDamageOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);



The StoppingDistance variable is going to determine the stopping distance between the enemy and the player.

I’ve added the EditAnywhere parameter in the UPROPERTY which means that we will be able to edit this variable on the blueprint instance, so you can chose to make the enemy stop at a higher or lower distance from the player actor.

As for the SeekPlayerTimerHandler variable, we are going to use it to create a timer that will call the SeekPlayer function in a loop, the same way we did in the BP_Enemy blueprint, and we are also going to use that variable to stop the timer.

As for the functions that I’ve declared I gave them the same names as the ones we created in BP_Enemy blueprint, and you can already assume that these functions will perform the same actions as the ones in BP_Enemy.

First we are going to bind the functions to on component begin and overlap events of our collision components. Open MutantEnemy.cpp file and in BeginPlay below the line where we bind the OnAIMoveCompleted add the following lines of code:


					PlayerCollisionDetection->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerDetectedOverlapBegin);

	PlayerCollisionDetection->OnComponentEndOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerDetectedOverlapEnd);

	PlayerAttackCollisionDetection->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerAttackOverlapBegin);

	PlayerAttackCollisionDetection->OnComponentEndOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerAttackOverlapEnd);

	DamageCollision->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnDealDamageOverlapBegin);



Now we are going to create and code the functions one by one starting with MoveToPlayer function. Below the OnAIMoveCompleted function, add the following lines of code:


					void AMutantEnemy::MoveToPlayer()
{
	MutantAIController->MoveToLocation(PlayerREF->GetActorLocation(), StoppingDistance, true);
}


In the MoveToPlayer function we are simply calling the MutantAIController’s MoveToLocation function, passing it the location of the PlayerREF variable which is a reference to the player actor in the game.

The second parameter is the stopping distance between the enemy and the target location e.g. player’s location.

And the third parameter indicates whether the MoveToLocation function will use path finding to avoid all potential obstacles that will get in the AI’s way.

Next, below the MoveToPlayer function create the SeekPlayer function:


					void AMutantEnemy::SeekPlayer()
{
	MoveToPlayer();
	GetWorld()->GetTimerManager().SetTimer(SeekPlayerTimerHandle, this,
		&AMutantEnemy::SeekPlayer, 0.25f, true);
}


Inside the SeekPlayer we are first calling the MoveToPlayer function to make the AI move to player, and then we are creating a timer that will call the SeekPlayer function every 0.25 seconds.

The first parameter in the SetTimer function is the SeekPlayerTimerHandler, and the reference to this timer will be stored in that variable, which means that in order to stop the timer, we simply need to use the SeekPlayerTimerHandler variable:


					void AMutantEnemy::StopSeekingPlayer()
{
	GetWorld()->GetTimerManager().ClearTimer(SeekPlayerTimerHandle);
}


By calling the ClearTimer function of the TimerManager and passing it SeekPlayerTimerHandler we will stop the timer and it will not continue to call the SeekPlayer function anymore.

When we detect the player’s presence we are going to set the PlayerDetected value to true and call the SeekPlayer function to make the AI chase the player:


					void AMutantEnemy::OnPlayerDetectedOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		PlayerDetected = true;
		SeekPlayer();
	}
}


And when the player goes outside the bounds of the player detection collision component, we are going to set the PlayerDetected value to false, then we are going to call StopSeekingPlayer so that the AI will stop chasing the player, and lastly we will make the AI patrol again:


					void AMutantEnemy::OnPlayerDetectedOverlapEnd(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		PlayerDetected = false;
		StopSeekingPlayer();
		MutantAIController->RandomPatrol();
	}
}


When the enemy comes close to the player actor and the player collides with the player attack collision detection component we will set the CanAttackPlayer value to true:


					void AMutantEnemy::OnPlayerAttackOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		CanAttackPlayer = true;
	}
}


And when the player runs away from the enemy and exits the can attack player collision component we will set the CanAttackPlayer value to false, and we will make the AI chase the player because even though the player actor did exit the can attack player collision component he is still inside the player detected collision component:

Img 59

					void AMutantEnemy::OnPlayerAttackOverlapEnd(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		CanAttackPlayer = false;

		SeekPlayer();
	}
}


And lastly, when we attack the player, we will detect if we can deal damage, and then we will deal damage to the player:


					void AMutantEnemy::OnDealDamageOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF && CanDealDamage)
	{
		// deal damage to player
		UE_LOG(LogTemp, Warning, TEXT("Player Damaged"));
	}
}


For our example we are just going to print to the Output Log tab, but for your own games you will create variables that will represent the player’s health and you will subtract from that value when the enemy attacks the player.

Before we can test this, we need to make some changes in the OnAIMoveCompleted function:


					void AMutantEnemy::OnAIMoveCompleted(FAIRequestID RequestID, const FPathFollowingResult& Result)
{
	if (!PlayerDetected)
	{
		MutantAIController->RandomPatrol();
	}
	else if (PlayerDetected && CanAttackPlayer)
	{
		StopSeekingPlayer();

		// attack player
		UE_LOG(LogTemp, Warning, TEXT("Player ATTACKED"));
	}
}


Instead of making the AI patrol again when OnAIMoveCompleted is called, we will first test if the player is not detected on line 3, if that is not true then we will make the AI patrol again. But if the player is detected and we can attack the player, we will first stop seeking the player, and then we will attack him.

Currently for the attack I am going to print to the Output Log tab, but after we test this part of the tutorial we will play the attack animation and make the enemy attack the player.

 Save and compile the code and let’s run the game to test it out:


As soon as the enemy detects the player it starts moving towards him, and when it reaches the player, of CanAttackPlayer is true, we saw that Player ATTACKED was printed in the console.

Attacking The Player And Dealing Damage

To make the enemy attack the player we need to play the enemy attack montage animation. To do this, we need a few variables.

In the MutantEnemy.h file, at the bottom of the class add the following lines of code:


					UPROPERTY(EditAnywhere)
		class UAnimMontage* EnemyAttackAnimation;

	class UAnimInstance* AnimInstance;

	UFUNCTION(BlueprintCallable)
		void AttackAnimationEnded();



EnemyAttackAnimation is a reference to the enemy attack montage. AnimInstance is a reference to the anim instance that will play the attack animation.

And the AttackAnimationEnded function is going to act like a delegate that will inform us when the animation has ended. Notice how I added BlueprintCallable in the UFUNCTION parameter, this is because we are going to create another notify event in the enemy attack montage, and we are going to call AttackAnimationEnded from that event.

Before we proceed make sure that you declare the AttackAnimationEnded function in the MutantEnemy.cpp file, you can click here to see a shortcut how to declare function.

Now save and compile the class and open BP_Enemy_CPP blueprint in the editor.

In the Components tab, select the BP_Enemy_CPP(self) top parent, and in the Details tab for the Enemy Attack Animation, click on the drop down list and select Mutant_Attack_Montage:

Img 60

Compile and save the changes made to the blueprint and then open the Mutant_Attack_Montage animation in the editor.

Near the end of the attack animation under the Notifies timeline, Right Click -> Add Notify -> New Notify and give the new notify name Attack Animation Ended:

Img 61

Save the new change and open the BP_Enemy_Animation blueprint in the editor. In the Event Graph Right Click and in the search bar filter for attack animation ended notify:

Img 62
From the Attack Animation Ended notify call the Attack Animation Ended function that we declared in the MutantEnemy class:

Img 63
You can copy the nodes from here:


Compile and save the new changes and open MutantEnemy.cpp file. First we are going to add the additional includes that we need to play the attack animation. So below the last include add the following lines:


					#include "Animation/AnimInstance.h"
#include "Animation/AnimMontage.h"



At the bottom of BeginPlay function get a reference to the anim instance:


					AnimInstance = GetMesh()->GetAnimInstance();



In OnAIMoveCompleted, make changes so that the enemy attacks the player when it reaches his position and the CanAttackPlayer value is set to true:


					void AMutantEnemy::OnAIMoveCompleted(FAIRequestID RequestID, const FPathFollowingResult& Result)
{
	if (!PlayerDetected)
	{
		MutantAIController->RandomPatrol();
	}
	else if (PlayerDetected && CanAttackPlayer)
	{
		StopSeekingPlayer();

		// attack player
		AnimInstance->Montage_Play(EnemyAttackAnimation);
	}
}



If the enemy tries to attack the player e.g. the attack animation starts playing, and the player runs away from the enemy at that moment, we are going to stop the attack animation and start chasing the player again.

For that, we need to make some changes in the OnPlayerAttackOverlapEnd function:


					void AMutantEnemy::OnPlayerAttackOverlapEnd(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		CanAttackPlayer = false;

		// stop the attack animation and chase the player
		AnimInstance->Montage_Stop(0.0f, EnemyAttackAnimation);

		SeekPlayer();
	}
}



Calling Montage_Stop function from AnimInstance and passing 0.0f as the first parameter will immediately stop playing the provided animation which is the second parameter for that function and in our case the EnemyAttackAnimation.

And the last step is to attack the player again when the animation ends, which we will do in the AttackAnimationEnded function:


					void AMutantEnemy::AttackAnimationEnded()
{
	if (CanAttackPlayer)
	{
		AnimInstance->Montage_Play(EnemyAttackAnimation);
	}
}


Before we test this out, I am going to leave the finished versions of MutantEnemy.h and .cpp files as a reference:


					#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "MutantEnemy.generated.h"

UCLASS()
class ENEMY_AI_API AMutantEnemy : public ACharacter
{
	GENERATED_BODY()

public:
	// Sets default values for this character's properties
	AMutantEnemy();

protected:
	// Called when the game starts or when spawned
	virtual void BeginPlay() override;

public:
	// Called every frame
	virtual void Tick(float DeltaTime) override;

	// Called to bind functionality to input
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

public:

	bool PlayerDetected;
	bool CanAttackPlayer;

	UPROPERTY(BlueprintReadWrite)
		bool CanDealDamage;

	class AEnemy_AICharacter* PlayerREF;

	UPROPERTY(EditAnywhere)
		class USphereComponent* PlayerCollisionDetection;

	UPROPERTY(EditAnywhere)
		class USphereComponent* PlayerAttackCollisionDetection;

	UPROPERTY(EditAnywhere)
		class UBoxComponent* DamageCollision;

	class AMutantAIController* MutantAIController;

	void OnAIMoveCompleted(struct FAIRequestID RequestID, const struct FPathFollowingResult& Result);

	UPROPERTY(EditAnywhere)
		float StoppingDistance = 100.0f;

	FTimerHandle SeekPlayerTimerHandle;

	UFUNCTION()
		void MoveToPlayer();

	UFUNCTION()
		void SeekPlayer();

	UFUNCTION()
		void StopSeekingPlayer();

	UFUNCTION()
		void OnPlayerDetectedOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnPlayerDetectedOverlapEnd(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex);

	UFUNCTION()
		void OnPlayerAttackOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnPlayerAttackOverlapEnd(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex);

	UFUNCTION()
		void OnDealDamageOverlapBegin(class UPrimitiveComponent* OverlappedComp,
			class AActor* OtherActor, class UPrimitiveComponent* OtherComp,
			int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UPROPERTY(EditAnywhere)
		class UAnimMontage* EnemyAttackAnimation;

	class UAnimInstance* AnimInstance;

	UFUNCTION(BlueprintCallable)
		void AttackAnimationEnded();

};


MutantEnemy.cpp:


					#include "MutantEnemy.h"
#include "Enemy_AICharacter.h"
#include "Components/SphereComponent.h"
#include "Components/BoxComponent.h"
#include "MutantAIController.h"
#include "Navigation/PathFollowingComponent.h"
#include "AITypes.h"
#include "Animation/AnimInstance.h"
#include "Animation/AnimMontage.h"


// Sets default values
AMutantEnemy::AMutantEnemy()
{
 	// Set this character to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;

	PlayerCollisionDetection =
		CreateDefaultSubobject<USphereComponent>(TEXT("Player Collision Detection"));

	PlayerCollisionDetection->SetupAttachment(RootComponent);

	PlayerAttackCollisionDetection =
		CreateDefaultSubobject<USphereComponent>(TEXT("Player Attack Collision Detection"));

	PlayerAttackCollisionDetection->SetupAttachment(RootComponent);

	DamageCollision = CreateDefaultSubobject<UBoxComponent>(TEXT("Damage Collision"));
	DamageCollision->SetupAttachment(GetMesh(), TEXT("RightHandSocket"));

}

// Called when the game starts or when spawned
void AMutantEnemy::BeginPlay()
{
	Super::BeginPlay();

	MutantAIController = Cast<AMutantAIController>(GetController());
	MutantAIController->GetPathFollowingComponent()->OnRequestFinished.AddUObject
	(this, &AMutantEnemy::OnAIMoveCompleted);

	PlayerCollisionDetection->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerDetectedOverlapBegin);

	PlayerCollisionDetection->OnComponentEndOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerDetectedOverlapEnd);

	PlayerAttackCollisionDetection->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerAttackOverlapBegin);

	PlayerAttackCollisionDetection->OnComponentEndOverlap.AddDynamic(this,
		&AMutantEnemy::OnPlayerAttackOverlapEnd);

	DamageCollision->OnComponentBeginOverlap.AddDynamic(this,
		&AMutantEnemy::OnDealDamageOverlapBegin);

	AnimInstance = GetMesh()->GetAnimInstance();
}

// Called every frame
void AMutantEnemy::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

// Called to bind functionality to input
void AMutantEnemy::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

}

void AMutantEnemy::OnAIMoveCompleted(FAIRequestID RequestID, const FPathFollowingResult& Result)
{
	if (!PlayerDetected)
	{
		MutantAIController->RandomPatrol();
	}
	else if (PlayerDetected && CanAttackPlayer)
	{
		StopSeekingPlayer();

		// attack player
		AnimInstance->Montage_Play(EnemyAttackAnimation);
	}
}

void AMutantEnemy::MoveToPlayer()
{
	MutantAIController->MoveToLocation(PlayerREF->GetActorLocation(), StoppingDistance, true);
}

void AMutantEnemy::SeekPlayer()
{
	MoveToPlayer();
	GetWorld()->GetTimerManager().SetTimer(SeekPlayerTimerHandle, this,
		&AMutantEnemy::SeekPlayer, 0.25f, true);
}

void AMutantEnemy::StopSeekingPlayer()
{
	GetWorld()->GetTimerManager().ClearTimer(SeekPlayerTimerHandle);
}

void AMutantEnemy::OnPlayerDetectedOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		PlayerDetected = true;
		SeekPlayer();
	}
}

void AMutantEnemy::OnPlayerDetectedOverlapEnd(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		PlayerDetected = false;
		StopSeekingPlayer();
		MutantAIController->RandomPatrol();
	}
}

void AMutantEnemy::OnPlayerAttackOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		CanAttackPlayer = true;
	}
}

void AMutantEnemy::OnPlayerAttackOverlapEnd(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF)
	{
		CanAttackPlayer = false;

		// stop the attack animation and chase the player
		AnimInstance->Montage_Stop(0.0f, EnemyAttackAnimation);

		SeekPlayer();
	}
}

void AMutantEnemy::OnDealDamageOverlapBegin(UPrimitiveComponent* OverlappedComp,
	AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex,
	bool bFromSweep, const FHitResult& SweepResult)
{
	PlayerREF = Cast<AEnemy_AICharacter>(OtherActor);
	if (PlayerREF && CanDealDamage)
	{
		// deal damage to player
		UE_LOG(LogTemp, Warning, TEXT("Player Damaged"));
	}
}

void AMutantEnemy::AttackAnimationEnded()
{
	if (CanAttackPlayer)
	{
		AnimInstance->Montage_Play(EnemyAttackAnimation);
	}
}


Make sure that you save and compile the code. Now let’s run the game to test it out:


If by any chance you see Player Damage printed multiple times in the Output Log when you attack, you can move the Attack Ended notify a little closer to the Attack Started notify in the Mutant_Attack_Montage animation:

Img 64


Where To Go From Here

In this tutorial we saw simple and intermediate ways how we can set up enemy AI in Unreal Engine using Blueprints and C++.

If you want to learn a more advanced way how to set up enemy AI using Behavior Trees which gives you more control and helps you create realistic enemies, you can do that in my Enemy AI With Behavior Trees In Unreal Engine tutorial.

Leave a Comment

With a FREE Awesome Tuts account

you can download assets and project files, bookmark your favorite posts and more

Already have an account? Sign in
